COMP800 WING ELEMENT ONLY

$1,199.00

[{"id":37890646605979,"title":"No \/ No","option1":"No","option2":"No","option3":null,"sku":"COMP800WINGONLY-2","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"COMP800 WING ELEMENT ONLY - No \/ No","public_title":"No \/ No","options":["No","No"],"price":119900,"weight":45359,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":43001563676827,"title":"No \/ Yes","option1":"No","option2":"Yes","option3":null,"sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"COMP800 WING ELEMENT ONLY - No \/ Yes","public_title":"No \/ Yes","options":["No","Yes"],"price":149999,"weight":45359,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":37890646573211,"title":"Yes \/ No","option1":"Yes","option2":"No","option3":null,"sku":"COMP800WINGONLY-1","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"COMP800 WING ELEMENT ONLY - Yes \/ No","public_title":"Yes \/ No","options":["Yes","No"],"price":139999,"weight":45359,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]},{"id":43001563709595,"title":"Yes \/ Yes","option1":"Yes","option2":"Yes","option3":null,"sku":"","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"COMP800 WING ELEMENT ONLY - Yes \/ Yes","public_title":"Yes \/ Yes","options":["Yes","Yes"],"price":169999,"weight":45359,"compare_at_price":null,"inventory_management":null,"barcode":"","requires_selling_plan":false,"selling_plan_allocations":[]}]

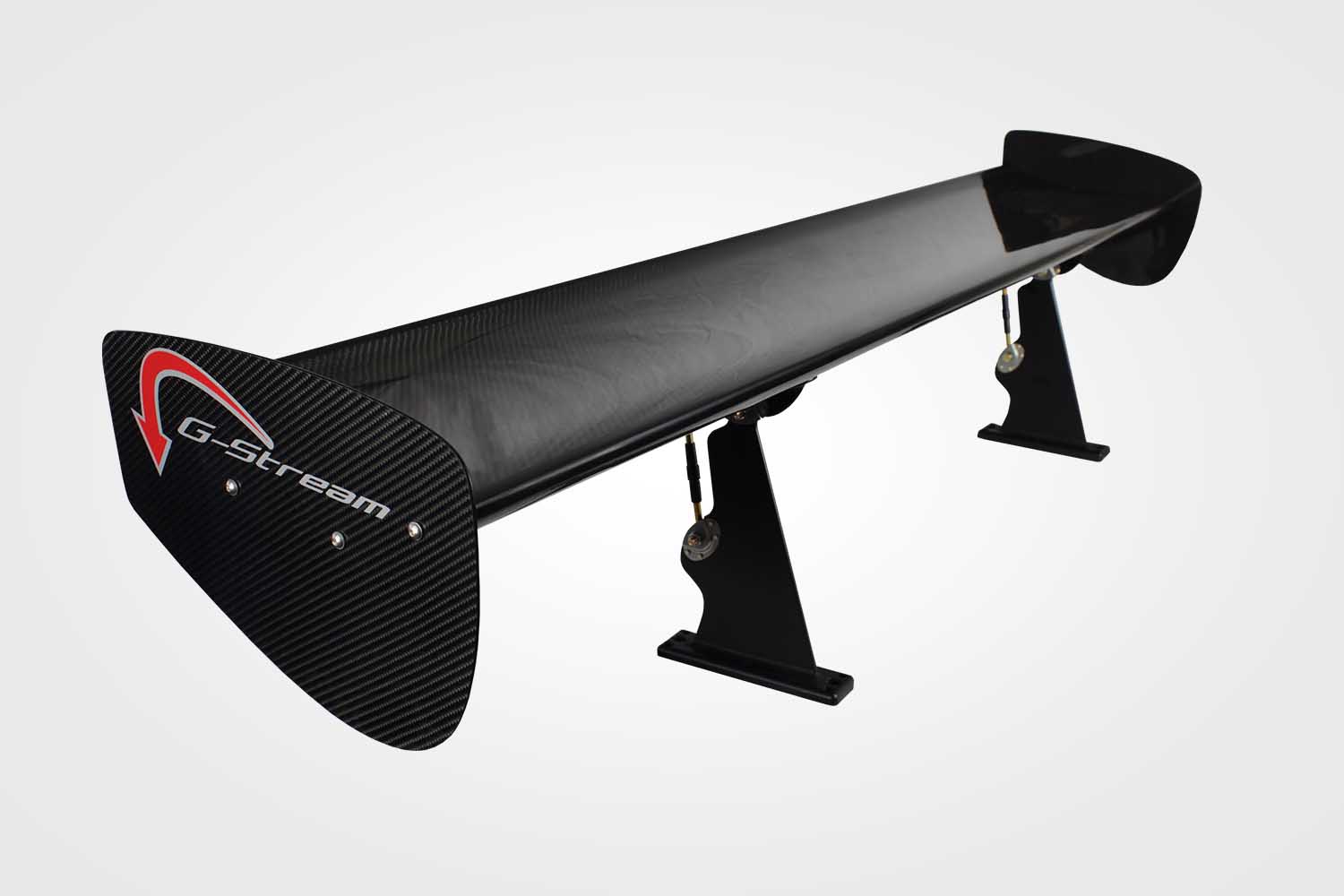

This is for the CARBON WING ELEMENT ONLY
DOES NOT include uprights or Mounting
End Plates Optional
Upper Billet Mounts Optional
World Challenge Winning Aerodynamic Design
CFD Developed
Wind Tunnel Tested
12" Chord with 68" Width
SCCA/NASA/Trans Am legal

Size: 12" chord width by 68" long

Weight: Approx. 7.5 lbs., excluding End Plates and Struts.

Construction: Proprietary carbon fiber and epoxy construction with structural polyurethane foam core.

Finish: Clear Gelcoat or Grey urethane primer, ready to paint.

Strut Center Distance range: 18 to 44 inches

Strut Receivers (2): CNC machined from 6061-T6 aluminum with riveted and bonded stainless steel clevis plates. Provide a fully articulated interface and pitch adjustment of 2 deg. per turn with all G-Stream Struts.
Strut Receivers are supplied unmounted and must be installed only after mounting the struts and determining strut center distance.

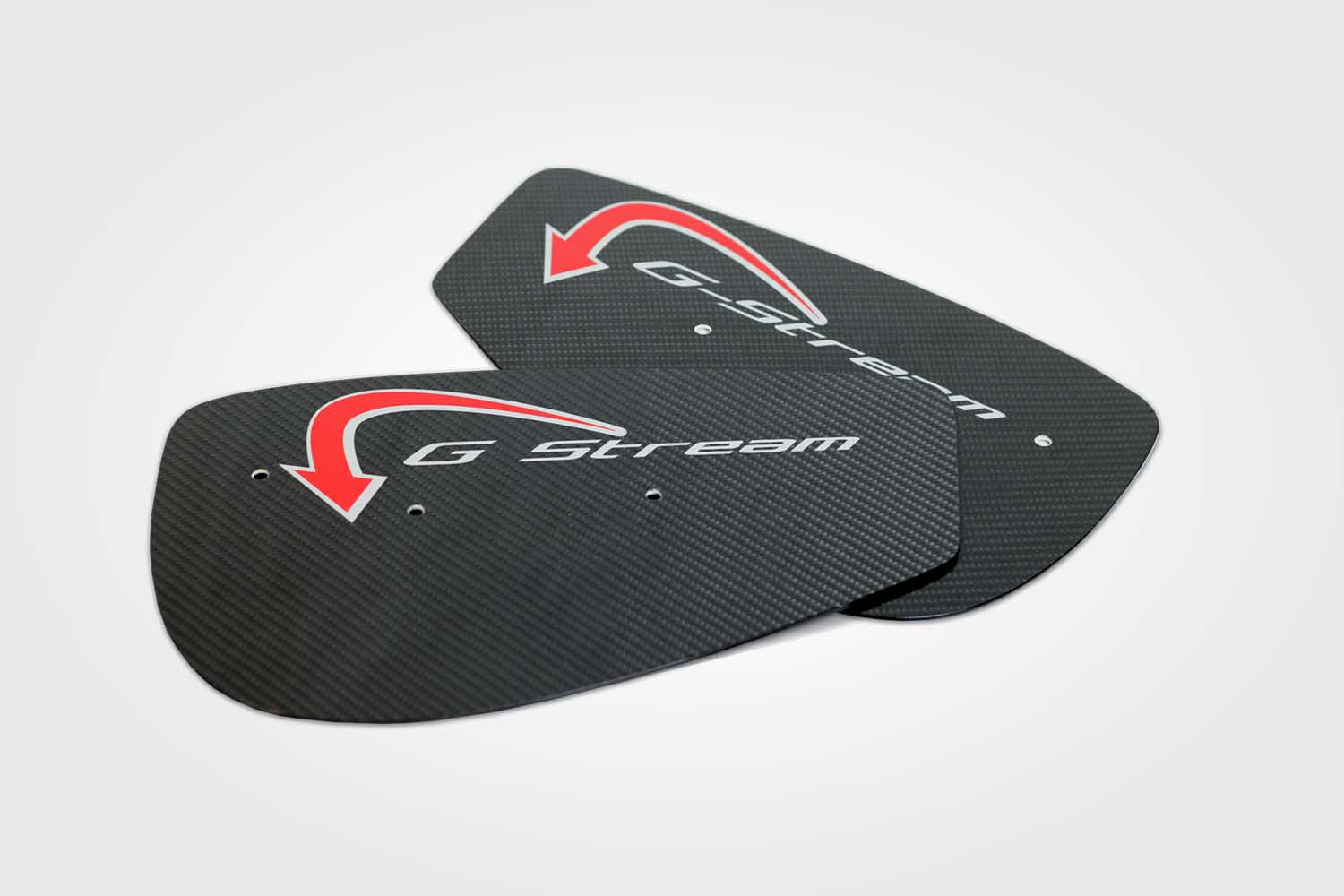

End Plates (2): Carbon Fiber end pates with G-Stream logo
